🏧 What Really Happens Inside an ATM When You Withdraw Cash?

You insert your card, type a 4-digit PIN, and — whirr — cash appears. It feels like magic, but behind that beige box is a symphony of hardware, software, and high‑speed networking. In India alone, there are over 2.16 lakh ATMs handling millions of transactions every day.[reference:0]

Let’s walk through exactly what happens — from the moment you slide your card to the moment you grab your notes.

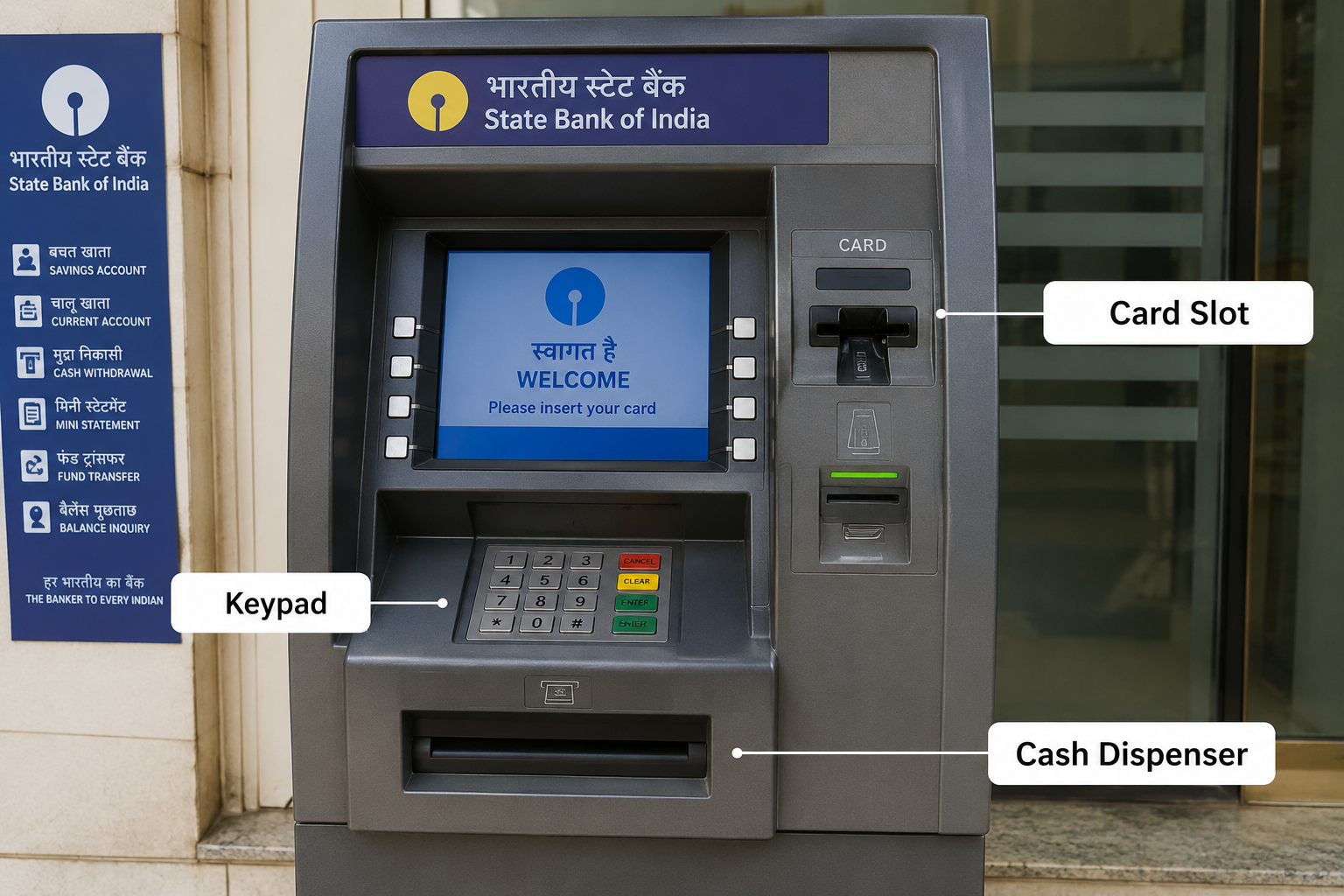

1. Card Insertion & Reading

You insert your card (chip side up, arrow pointing in). The card reader wakes up and reads the magnetic stripe or EMV chip.[reference:1] It pulls your account number, bank routing info, and encrypted PIN data. Some machines even greet you by name if the stripe carries personalisation.[reference:2]

If the chip is damaged or the card is inserted incorrectly, the machine will reject it immediately to prevent errors.[reference:3]

2. PIN Entry & Encryption

You’re prompted to enter your Personal Identification Number (PIN). The keypad you press is encrypted — the ATM doesn’t store your PIN in plain text. Instead, it uses strong algorithms like Triple DES or AES to scramble the data before it ever leaves the machine.[reference:4]

This encryption ensures that even if someone intercepts the communication, they can’t read your PIN.

3. The ATM “Talks” to the Bank

Once you hit Enter, the ATM doesn’t decide anything on its own. It packages your request and sends it over a secure VPN or leased line to the bank’s central system — often called the ATM Switch.[reference:5][reference:6]

Your bank’s host computer then checks three things:

• PIN — does it match?
• Balance — is there enough money?
• Fraud flags — is this transaction unusual?

If all checks pass, the host sends back a “transaction approved” message. This entire round‑trip happens in less than 5 seconds.

4. Cash Dispensing — The Mechanical Magic

Now the real action begins. The ATM receives the green light and tells the cash dispenser to start working.

How the dispenser works:

• Cassettes: Cash is stored in 4 separate cassettes, each holding 2,000–2,500 notes. Fully loaded, an ATM can hold ₹6–10 lakh.[reference:8]
• Rubber rollers: When cash is requested, rubber picker rollers peel off one bill at a time from the cassette.[reference:9]
• Scanners: Sophisticated infrared sensors check each bill to confirm it’s the right denomination and that no two bills are stuck together.[reference:10][reference:11]
• Reject box: If a bill fails inspection, it’s diverted to a reject box, and the machine picks another.[reference:12]
• Stacking & presenting: The accepted bills are stacked and moved to the exit slot via another set of rollers.[reference:13]

5. Completion & Account Update

Once the cash is dispensed and you take it, the ATM sends a completion message back to your bank.[reference:14] Your account is debited instantly, and the ATM’s internal counters are updated so the bank knows exactly how much cash is left.[reference:15]

If you asked for a receipt, the thermal printer prints a mini statement with your remaining balance.

🔒 Security — What Happens Behind the Scenes

ATMs are fortresses of security:

• Encryption: All data (PIN, account numbers) is encrypted end‑to‑end.[reference:16]
• Anti‑skimming: Many ATMs have built‑in detectors that can spot and block fake card readers.[reference:17]
• Surveillance: Internal and external cameras record every transaction.[reference:18]
• Tamper‑proof safes: The cash dispenser itself is a UL‑291 certified safe.[reference:19]

⚡ Key Events in an ATM Withdrawal

🤯 Did You Know?

• Speed: The entire withdrawal process — from PIN entry to cash in hand — takes about 20–30 seconds on average.
• Cash capacity: A single ATM can hold up to ₹10 lakh when fully loaded.[reference:20]
• Self‑healing: If a bill is rejected, the machine automatically picks another without you even noticing.
• Cardless ATMs: You can now withdraw cash using UPI or a mobile app — no physical card needed![reference:21]

📌 Final Takeaway

An ATM withdrawal isn’t just a simple cash grab — it’s a precisely choreographed dance between hardware, encryption, network routing, and real‑time banking systems. The next time you hear that familiar whirring sound, you’ll know exactly what’s happening behind the screen.

Stay curious, and keep exploring the tech that runs our world. 🚀
